White Ford Transit cargo van with Altech-Eco CNG system
CNG bi-fuel2021 to 2024 model years3.5L PFDI V6

Ford Transit 3.5L CNG

Bi-fuel CNG for the Transit cargo van, with the tank mounted inside behind the front seats and gasoline as backup.

21 gge

CNG tank for the cargo van

150 to 450 mi

CNG range, depending on tank package

8 yr / 80,000 mi

Warranty on emissions components

Fuel Economy

CNG equal to gasoline

Specifications

  • 2021 to 2024 bi-fuel systems (natural gas and gasoline)
  • 2023 and 2024 Ford engine test group R/PFMXD03.56BG. T150, T250 and T350 emissions standard: Federal Tier 3 Bin 150.
  • 3.5L PFDI V6 engine only (port fueled direct injection)
  • 21 gge CNG tank for the cargo van, with refills around 17 to 19 gge. Custom tank sizes may be available: call for options.
  • Black powder coated metal tank cover
  • Two tank locations on the 148 in wheelbase: front to back behind the driver seat, or left to right behind both front seats. Limited tank options on the 130 in wheelbase.
  • Quarter-turn manual shut-off valve under the driver side door and a 1 micron in-line coalescing filter
  • No fuel selector switch
  • Fully integrated with the Ford vehicle; maintains all OBD-II functionality

Good to know

  • Keep gasoline in the tank at all times. The CNG system needs it to operate.
  • The CNG system runs only when there is natural gas on board and the low gasoline light is off.
  • Gasoline-only driving may lose some performance. We recommend 93 octane or higher.
  • Refill amounts vary with the station, weather and temperature, so Altech-Eco cannot guarantee how much each fill will hold.
  • HOV lane eligible in many states. Tax credits may be available: check with your tax advisor.

Warranty

8 yr / 80,000 mi

Emissions components

3 yr / 36,000 mi

Non-emissions components

Your existing Ford warranty stays fully intact.

Find a service center

Transit CNG photos

8 photos. Scroll sideways to see them all.

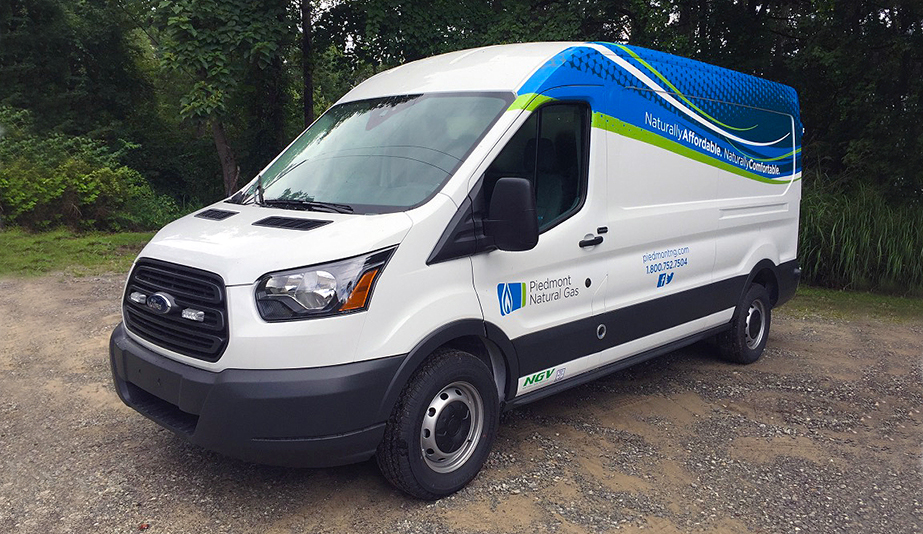

Transit Piedmont
Transit Piedmont2

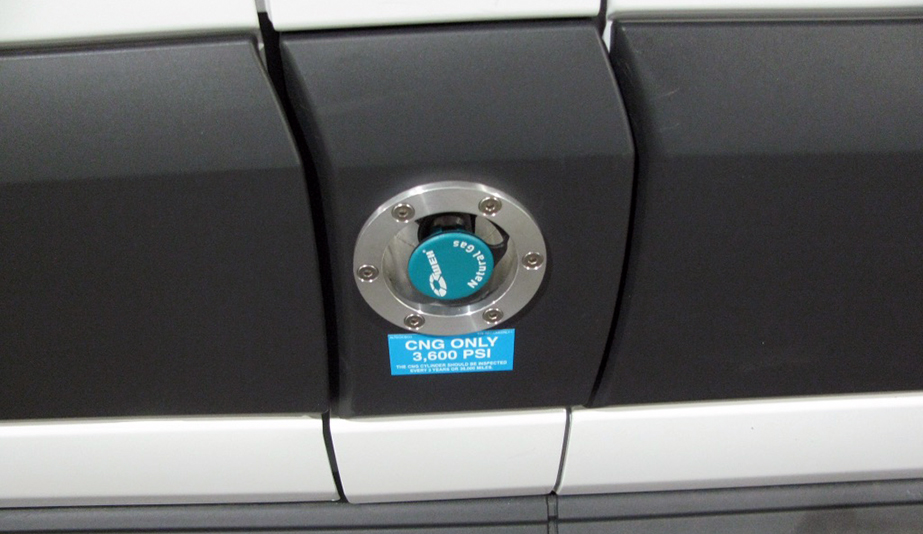

Transit Receptacle

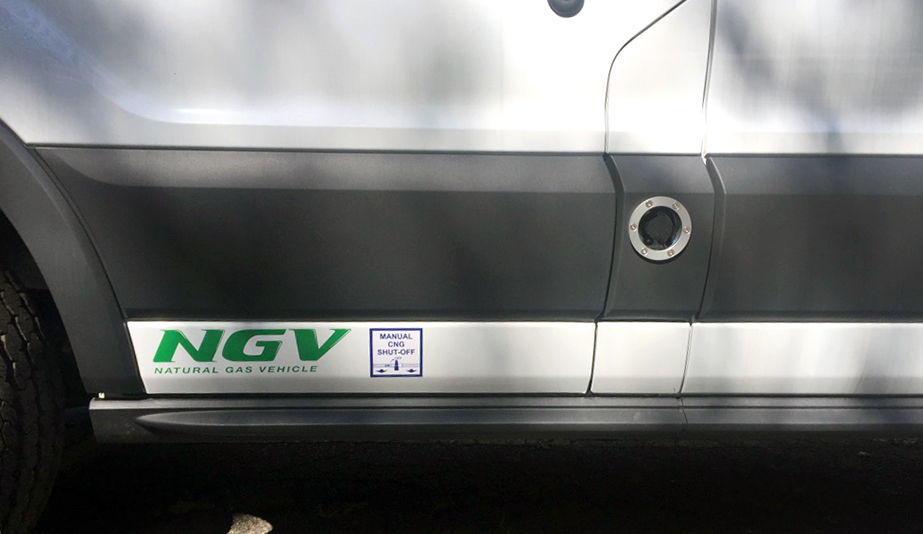

Transit Receptacle NGV Sticker

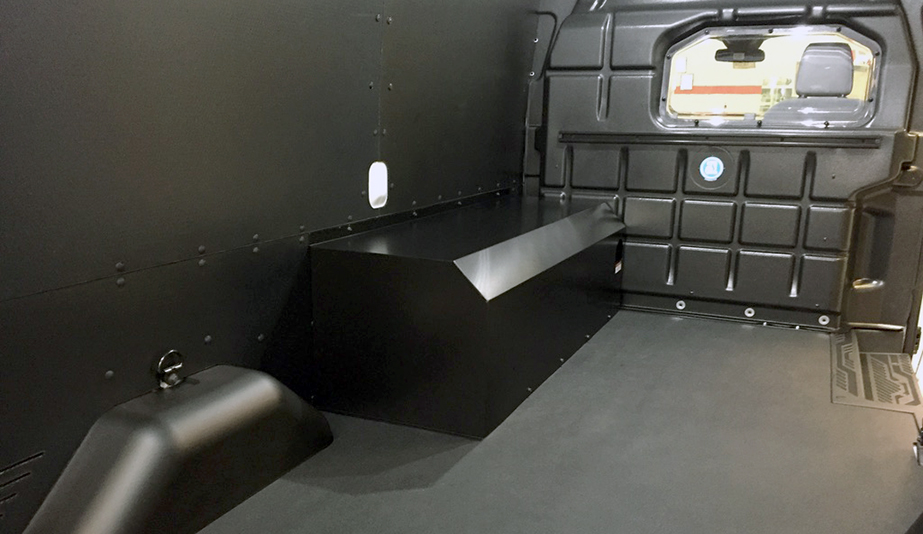

Tranist F to B Tank

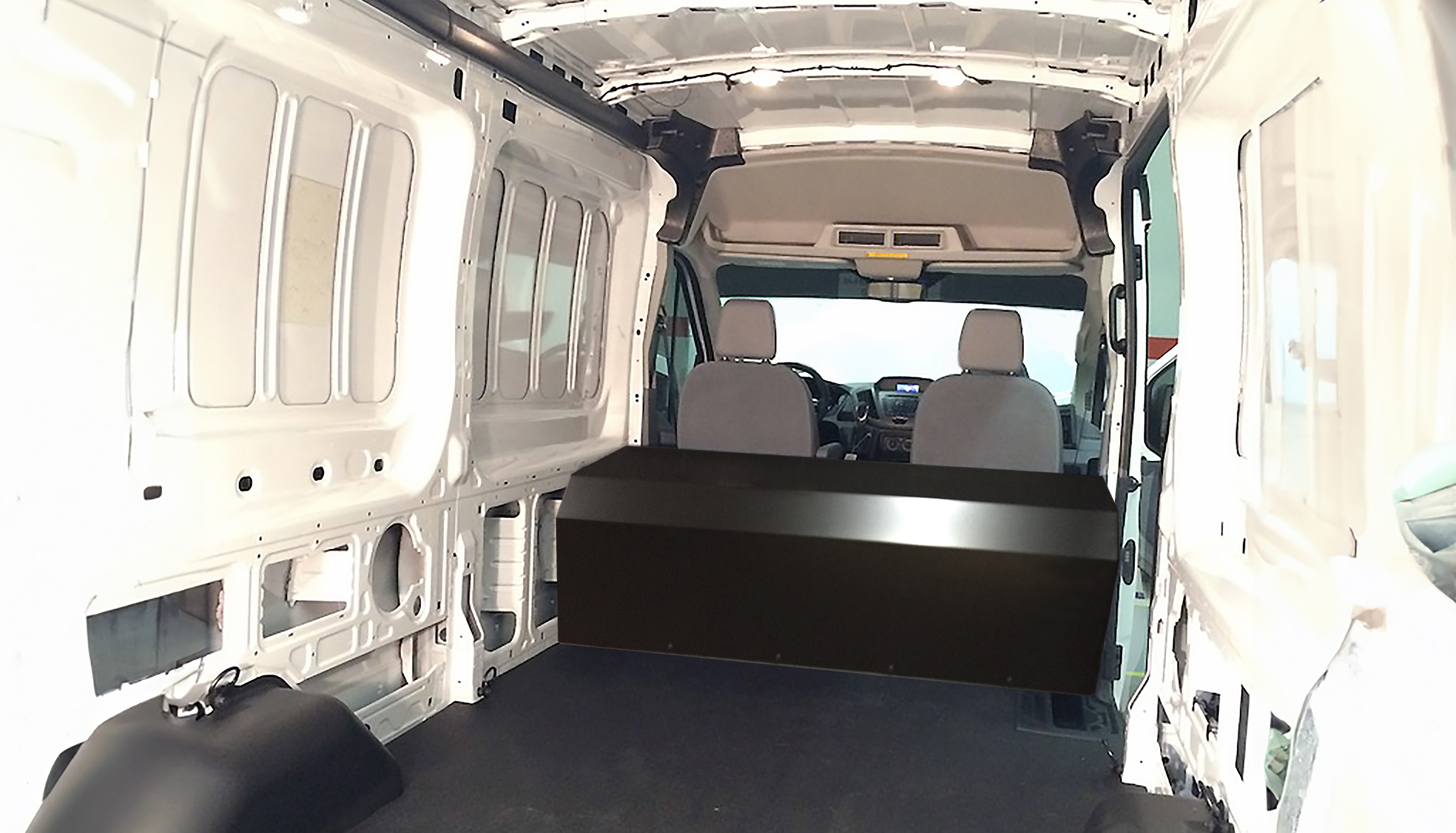

Transit LtoR tank

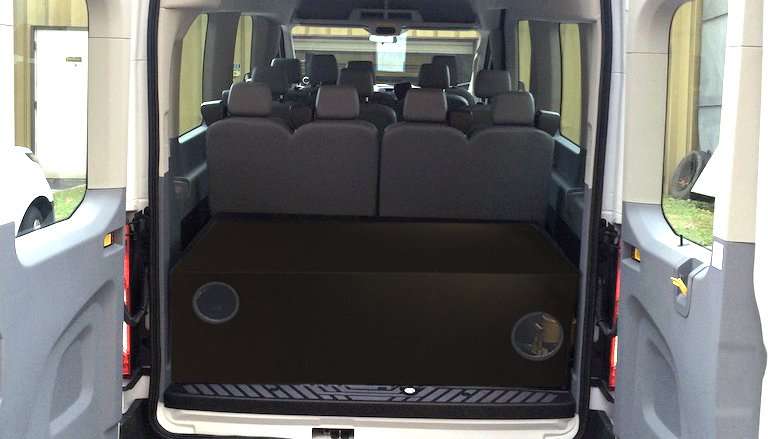

Tranist Passenger Tank

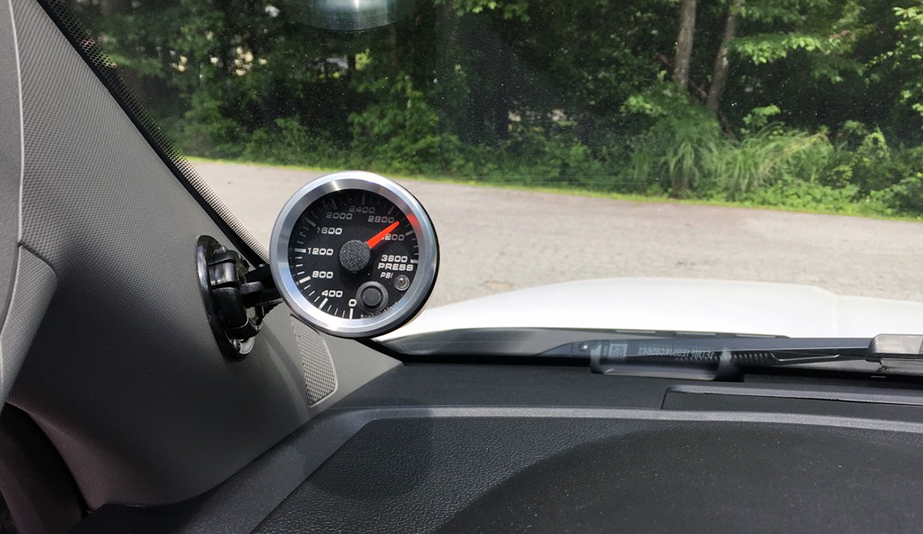

Transit gauge

Ready to talk about your fleet?

Talk to Miles in sales at (828) 654-8300, ext. 107.
